The Magnifying Transmitter by Nikola Tesla : "...It is a resonant transformer with a secondary in which the parts charged to a high potential, are of considerable area and arranged in space along ideal enveloping surfaces of very large radii of curvature, and at proper distances from one another thereby insuring a small electrical surface density everywhere so that no leak can occur even if the conductor is bare. It is suitable for any frequency,from a few to many thousands of cycles per second, and can be used in the production of currents of tremedous volume and moderate pressure, or of smaller amperage and immense electro-motive force. The maximum electric tension is merely dependant on the curvature of the surfaces on which the charged elements are situated and the area of the latter." (1)
In the Tesla's Magnifying transmitter, the energy is countinuously bounced back and forth between the earth and the reflecting capacitance at a rate timed to a natural rate of the earth.....(5)
Nikola Tesla has said in a patent about improvements relating to the Transmission of Electrical energy (4) : ".....Stated otherwise, the terrestrial conductor is thrown into resonance with the oscillations impressed upon it just like a wire. More than this, a number of facts ascertained by me clearly show, that the movement of electricity through it follows certain laws with nearly mathematical rigor. For the present it will be sufficient to state, that the earth behaves like a perfectly smooth or polished conductor of inappreciable resistance, with capacity and self-induction uniformly distributed along the axis of symmetry of waves propagation and transmitting slow electrical oscillations without sensible distortion and attenuation. Besides the above, three requirements seem to be essential to the establishment of the resonating condition.
The earth's diameter passing through the pole should be an odd multiple of the quarter wave-length, that is, of the ratio between the velocity of light and four times the frequency of the currents.
It is necessary to employ oscillations, in which the rate of radiation of energy into space in the form of Hertzians or electromagnetic waves is very small. To give an idea I would say, that the frequency should be smaller than twenty thousand per second, through shorter waves might be practicable. The lowest frequency would appear to be six per second, in which case there will be but one node, at or near the ground plate, and, paradoxical as it may seem, the opposite the transmitter. With oscillations still slower the earth, strictly speaking, will not resonate, but simply act as capacity, and the variation of potential will be more or less uniform over its entire surface.
The most essential requirement is, however, that irrespective of frequency, the wave or wave train should continue for a certain interval of time, which I have estimated to be not less than one twelfth-or probably 0.08484-of a second, and which is taken in passing to, and returning from the region diametrically opposite the pole, over the earth's surface, with a mean velocity of about 471,240 kilometers per second......"
" To produce an electrical movement of the required magnitude it is desirable to charge the terminal as highly as possible, for while a great quantity of electricity may also be displaced by a large capacity charged to low pressure, there are disavantages met with in many cases when the former is made too large. The chief of theses are due to the fact that an increase of the capacity entails a lowering of the frequency impulses or discharges and diminution of energy of vibration....." (3)
"....If we could produce electric effects of the required quality, this whole planet and the conditions of existence on it could be transformed. The sun raises the water of the oceans and winds drive it to distant regions where it remains in state of most delicate balance. If it were in our power to upset it when and wherever desired, this mighty life-sustaining stream could be at will controlled. We could irrigate arid deserts, create lakes and rivers and provide motive power in unlimited amount. This would be the most efficient way of harsening the sun to the uses of man......" ( Nikola Tesla, June 1919 ) (1)
----------------------
Note. Reference documents :
1) "The Electrical Experimenter: My Invention by Nikola Tesla", June 1919
2) Tesla: Man Out of Time, by Margaret Cheney - Prentice-Hall, Inc
3) Tesla US Patent number 1,119,736 : "Apparatus for transmitting electrical energy" (issued Dec. 1, 1914)
4) Tesla US Patent number 8,200 : " Improvements relating to the transmission of Electrical Energy" (17th Apr.,1906)
5) Theory of Wireless Power, By Eric Dollard, B.S.R.A. 1986.
Longitudinal Waves and Transverse Waves tests
The following is an electric wave experiment to demonstrate the inverse relationship between the coil, or magnetic inductor and the capacitor, or electrical inductor, and their usage in propagation of the electromagnetic field components.
An analog computer is used to study the space distribution of the electromagnetic field component of transverse and longitudinal waves along a transmission line in two different configurations (LMD/TEM).
This is the electricity Tesla was propagating from his Magnifying Transmitter. In the Tesla's Magnifying Transmitter, the energy is countinuously bounced back and forth between the earth and the reflecting capacitance at a rate timed to a natural rate of the earth.....
Note. References
1. Borderland Labs; Transverse & Longitudinal Electricity [video], BSRF, Bayside, California, 1988.
2. Borderland Labs; Tesla's Longitudinal Electricity [video], BSRF, Bayside, California, 1988.
-------------------------
TEST N°1) The TEM Transmission Line:
The TEM (Transverse ElectroMagnetic) line is the analog simulation of transverse EM waves propagation in space coming from two parallel wires, this is the conventional flow of EM radiation.
You may notice that the Magnetic energy is in Space OPPOSITION with the Dielectric energy
TEST N°2) LMD Transmission Line:
The LMD (Longitudinal Magneto-Dielectric) line is the analog simulation of longitudinal EM waves propagation in space coming from two parallel wires, this is the unconventional flow of the EM radiation.

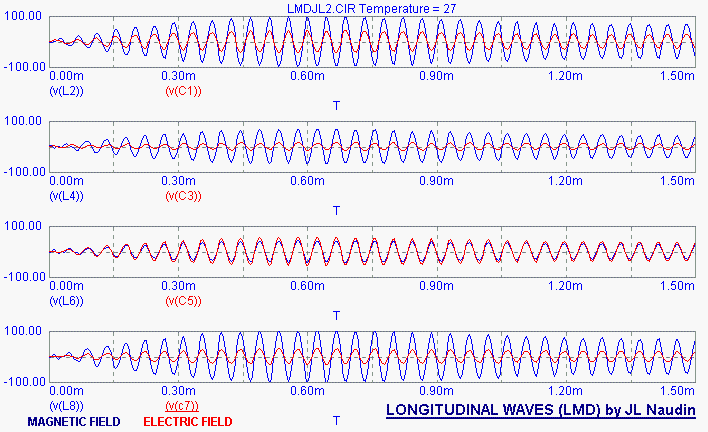

You may notice that the Magnetic energy is in Space CONJUCTION with the Dielectric energy
If you transform AC or DC Electric Current to Tesla's Longitudinal Electric Current, you should be able to get more Watts out than you put in.
The method used for measuring the magnetic induction:
Additional notes :
Each coil has been checked (with an LC oscillator circuit) so as to obtain the same inductance ( L=1.58 mH).
Coils specs (L1 to L8) : about 150 turns (l=85mm) of 4/10 mm on a ferrite rod ( l=120 mm, 9 mm diam)
All voltages measurements have been done with an oscilloscope.
-------------------------
Note. Some interesting book references:
1. Introduction to Dielectric & Magnetic Discharges in Electrical Windings, B.S.R.A. No TE-2, 1982
2. Electric Discharges, Waves, and Impulses. Chapter II, by Charles P. Steinmetz, McGraw Hill, N.Y. 1914, 2nd Ed.
3. Symbolic Representation of the Generalized Electric Wave, by Eric Dollard, B.S.R.A. No TE-4, 1985.
4. Symbolic Representation of Alternating Electric Waves, by Eric Dollard, B.S.R.A. No TE-3, 1985.
5. Theory and Calculation of Alternating Current Phenomena, Chpt.V, by C.P. Steinmetz, McGraw Hill N.Y. 1900, Third Edition
6. The Imaginary of Algebra, pages 33-35, by Alex McFarlane, American Association for the Advancement of Science, Vol XLI (1891-1894)
7. The Principles of the Algebra of Physics, A.McFarlane, American Association for the Advancement of Science, Vol XL (1891-1894) page 77.
8. Condensed Intro to Tesla Transformers, by Eric Dollard, B.S.R.A. 1986.
9. Theory of Wireless Power, By Eric Dollard, B.S.R.A. 1986.
10. Electromagnetic Theory, Oliver Heavyside, Chelsea Press.
11. Theory and Calculation of Transient Waves and Electric Oscillations, "Transients in Time & Space." C.P. Steinmetz, McGraw Hill, 1910 Third Edition.
12. Impedance, Angular Velocities & Frequencies of Oscillating Currents, by A.E. Kennelly, Institute of Radio Engineers, Nov. 3, 1913.
13. Vector Power in A.C. Circuits, A.E. Kennelly, Proc. A.I.E.E., June 29, 1910.
-------------------------
